Deskripsi :
Sepcification/Model DC-411A
Operating principle F Type & NF Type
Measuring range 0~1250um/0~50mil(other range is ok)
Resolution 0.1/1um
Accuracy 1~3%n or 2.5um
Min.radius workpiece F:Convex 1.5mm/Concave 25mm N:Convex 3mm/Concave 50mm
Min.mesuring area 6mm
Min.sample thickness 0.3mm
Metric/Imperial convertible
Power supply 2x1.5V AAA(UM-2)battery
Battery indicator Low battery indicator
Auto switch off
Size 126x63x25mm
Weight(Not including battery) 170g(not including batteries)

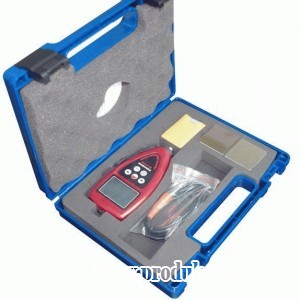

Standard delivery Main unit 1pc
FN type probe 1pc
Calibration base set 1pc
Calibration foil set 1set(4Foils)
Carrying case 1pc
Instruction manual 1pc
Optional Accessories

1.Cable&software for RS-232C/USB

2.Other range can be specified up to 18000um

3.Blooth
