Features

Robust aluminium housing
Easy intuitive operation
Fully automatic self-levelling
Automatic beam centring
Laser start point indication
Clear easy to read illuminated LCD
Integrated rechargeable batteries
IR remote control

Supplied with

Fittings

1. Target frame with target
2. Container

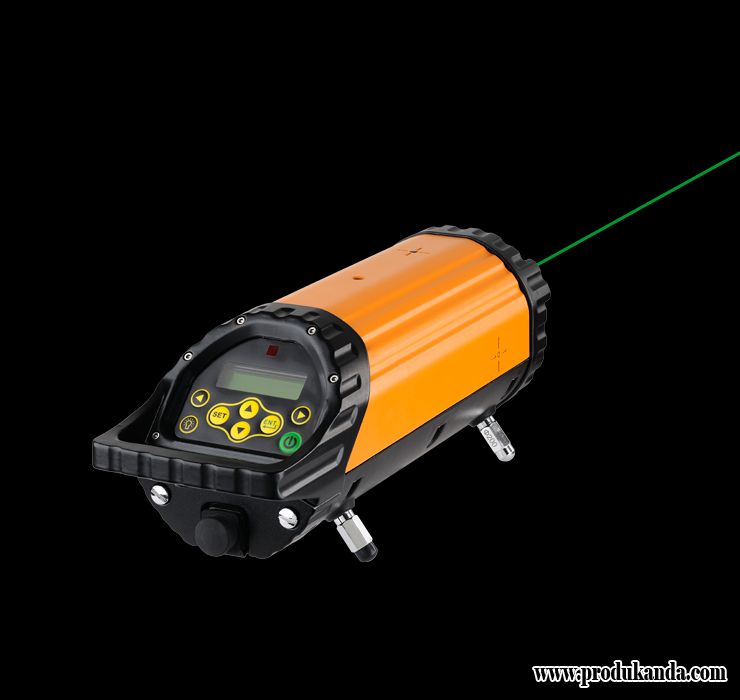

3. Pipe Laser
4. IR remote control
5. Leg set DN 500
6. Leg set DN 400
7. Leg set DN 300
8. Leg set DN 250
9. Leg set DN 200
10. Adapter for 3 leg set up
11. Charger
12. Battery case for alkaline batteries
13. Target DN 400 - 500

Application in pipes DN 150 w/o legs



Technical data
Laser class 3R, 2-3 mW / diode
Laser visible green, 522 nm
Beam diameter
8 mm
Working range up to 200 m
Grade range -20 % +40 %
Self-levelling range 5
Minimum display reading 0,001%
Horizontal accuracy 5 mm/100 m
Left / right scanning 4
Operating time 24 h (NiMH)
Temperature range 0 C +40 C
Power supply 4 x D 8000 mAh NiMH

(optional 4 x D Alkaline)
Remote control range

front / back 60 m/10 m
Dust / water protection IP 68
Dimensions 132 mm, length 380 mm
Weight (laser only) 5 kg
Weight set 11 kg
