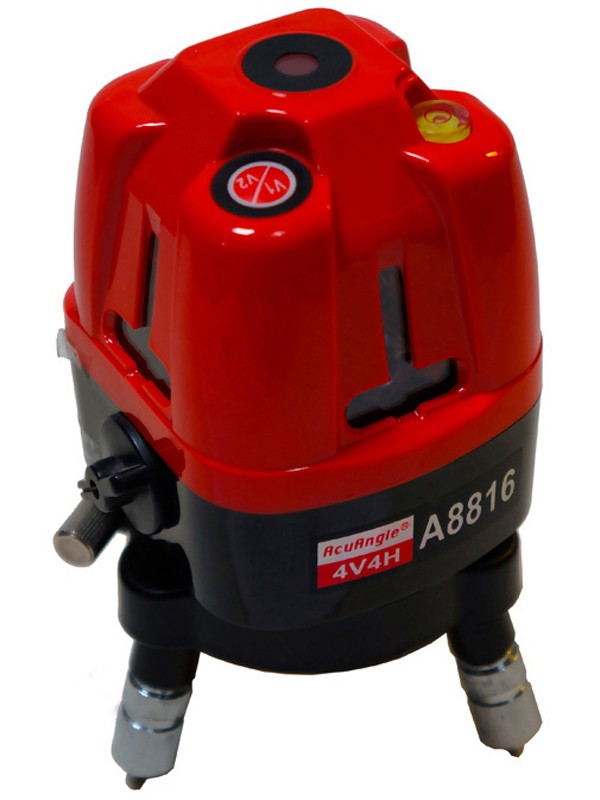

MULTI CROSSLINE & DOT LASER ( Termasuk Tripod )
1.This product projects 4 vertical laser lines and 4 horizontal laser lines . 2. It creates 6 cross points: up, down, right, left, front and back. 3. All cross points have laser dot which are extension of level and plumb so it can be used outdoor as well as indoor.
4.The body of this product can be rotated 360 degrees 5. Bright 10mW power beam 6. Weight: 0, 52 Kg 7. Equipped with aluminium box.


Features
This product projects 4 vertical laser lines and 4 horizontal laser lines and it self C levelling. It creates 6 cross points: up, down, right, left, front and back. All cross points have laser dot which are extension of level and plumb so it can be used outdoor as well as indoor.

Specification
Wave length
635nm/line, 650nm/dot
Precision of vertical
2 mm/5M
Precision of horizontal
2 mm/ 5M
Precision of up/down point
1.0 mm/ 5M
Precision of right angle
90 0.03
Laser beam angle
Horizontal
360
Vertical
> 200
Time of stable equilibrium
< 5 sec
Working temperature range
-5C ~ +45C
Micro-adjusting range
8
Dimensions
80x60x160mm
Weight(itself)
521g
Auto self-levelling range
3
Battery power
2 AA batteries
Life time(MMTF)
>2000 hours
Safety/Quality approval
CE,FDA
