Specifications

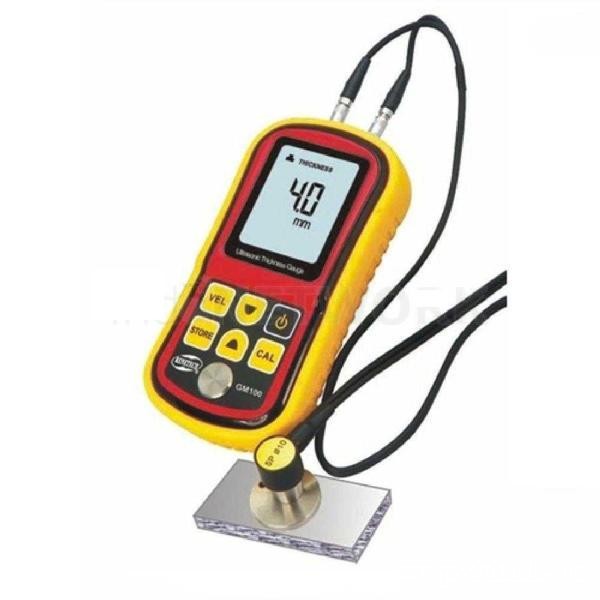

Ultrasonic Thickness Gauge GM100
Measuring Range 1.2 220mm (Steel)
Accuracy (1%H+0.1)mm
Resolution 0.1mm
Sound Velocity Range 1000 9999m/s
Working Frequency 5MHz
Minimum Limit for Tube Measuring 20 * 3mm (Steel)
Auto Calibration to Assure the Accuracy
Data Store/Recall/Delete Function
Sound Velocity Measurement
Low Battery Indication
Auto Power Off
LCD Backlight Display
Unit Size 80 * 38 * 150mm
Standard Quantity Per Carton 12PCS
Standard Carton Size 51.7 * 40.5 * 32cm
Standard Carton Gross Weight 14.7Kg
Power Supply 3 * 1.5V AAA Batteries
