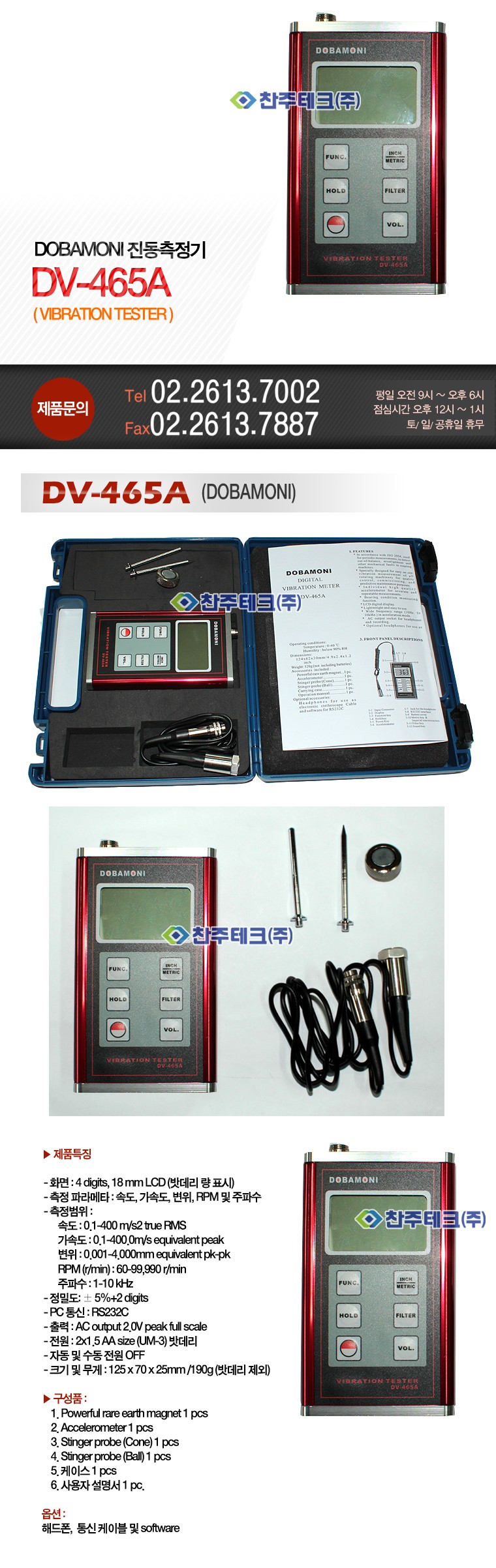

Deskripsi :
Display: 4 digits, 18 mm LCD
Measured values and makers

(units, 10,and battery symbol)
Transducer :
Piezoelectric accelerometer
Parameters measured:
Velocity, Acceleration, and Displacement RPM and Frequency
Measuring range :
Velocity:
0.01-400mm/s2 true RMS
0.000-16.00 inch/s2
Acceleration:
0.1-400.0m/s equivalent peak
0.3-1312 ft/s
Displacement : 0.001-4.000mm
0.04-160.0 mil , equivalent pk-pk

RPM (r/min) : 60-99,990 r/min
Readings should be multiplied by 10 if the display show '10'.
Frequency: 1-20 kHz
Frequency range for measuring
Acceleration :
10Hz. to 1kHz. In '1' mode
10Hz. to 10kHz. In '10' mode for bearing condition check
Velocity : 10Hz. to 1kHz.
Displacement : 10Hz. to 1kHz.
Accuracy: 5%+2 digits
Metric/ Imperial conversion
PC interface: RS232C
Output: AC output 2.0V peak full scale (load resistance: above 10k)
Power supply: 4x1.5 AAA size (UM-4) batteries
Power off : 2 modes
Manual off at any time

Operating conditions:
Temperature : 0-50 C
Humidity : below 90% RH
Accessories included :
Powerful rare earth magnet...1 pc.
Accelerometer...................1 pc.
Stinger probe (Cone)..........1 pc.
Stinger probe (Ball)...........1 pc.
Carrying case....................1 pc.
Operation manual..............1 pc.
Optional accessories:
Headphones for use as electronic stethoscope Cable and software for RS232C

Optional function: Bluetooth (including software)
