Specifications

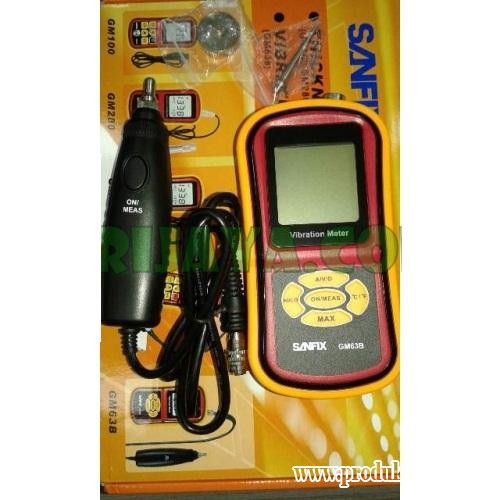

Vibration Meter GM63B
Measuring Range Acceleration : 0.1 199.9m/s
Velocity : 0.1 1999m/s
Displacement : 0.001 1999.9mm P-P
Accuracy 5%
Vibration Pickup Piezoelectric Ceramic Accelerometer (shear-type)
Measurement Frequency Range of Acceleration 10Hz 1Hz (LO), 1KHz 15KHz (HI)
Measurement Frequency Range of Velocity 10Hz 1KHz (LO)
Measurement Frequency Range of Displacement 10Hz 1KHz (LO)
LCD Display 3.5 Digits Display
Single Output No
Max Hold Function
Temperature Selection
Operation Condition Display
Operation Condition 0 - 40C
Unit Size 80 * 38 * 150mm
Standard Quantity Per Carton 12PCS
Power 9V Battery
